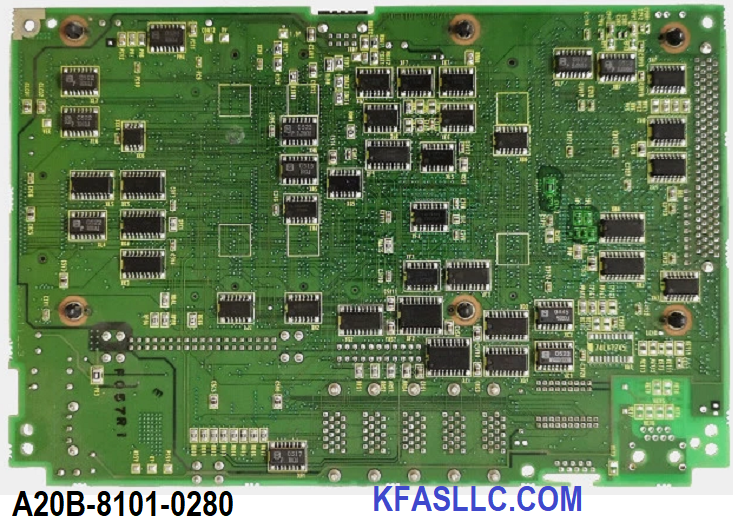

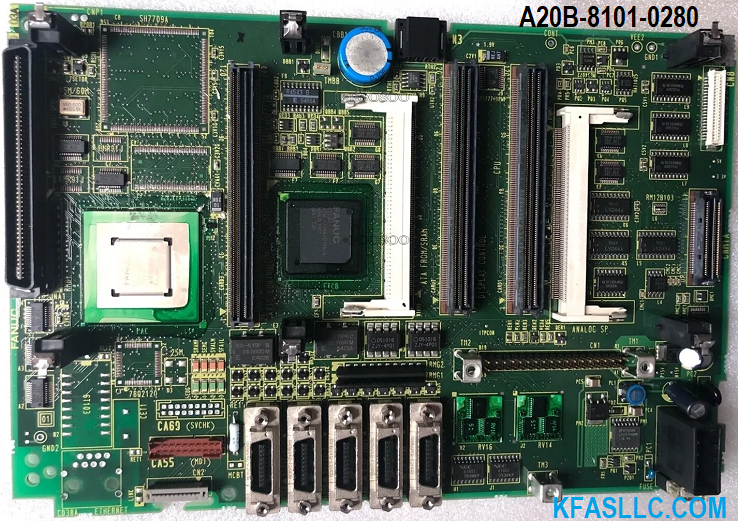

Fanuc 0i-C A20B-8101-0280
Main Board
A20B-8101-0280 or A20B81010280 is commonly used in Fanuc 0iC series controls.

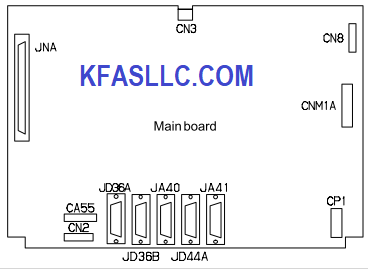

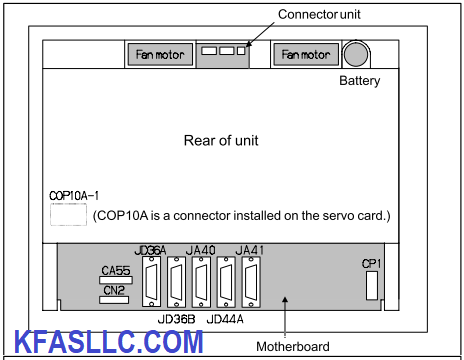

COP10A–1: Servo interface (FSSB)
CA55: MDI
JD36A: RS–232C serial port
JD36B: RS–232C serial port
JA40: Analog output/high–speed DI
JD44A: I/O link
JA41: Serial spindle/position coder
CP1: 24VDC–IN
Fanuc 0iC MAINTENANCE: B-64115EN
RECONDITIONED AND TESTED
RETROFITTING/ INTEGRATION SUPPORT NOT INCLUDED WITH PURCHASE.
