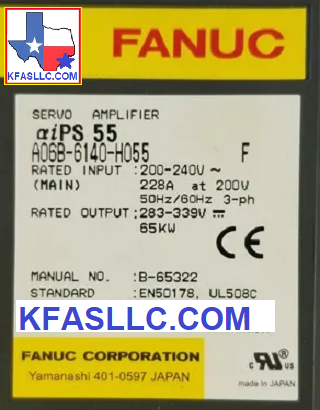

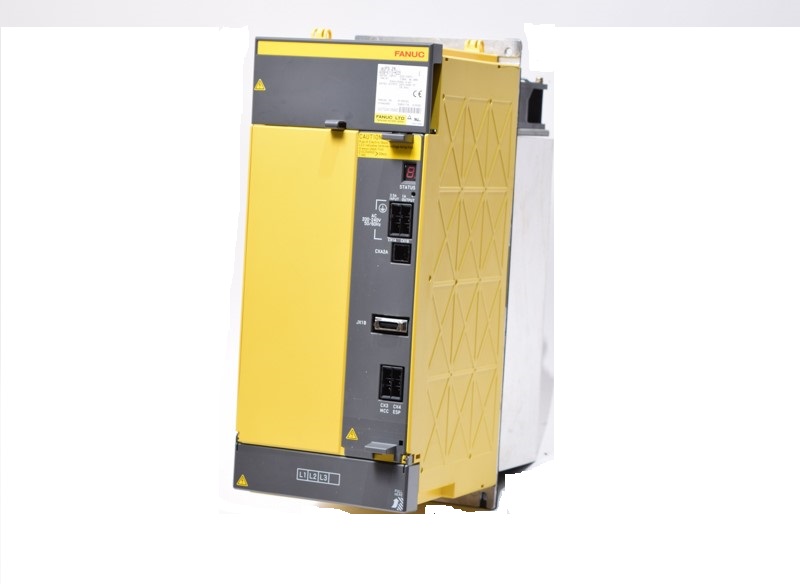

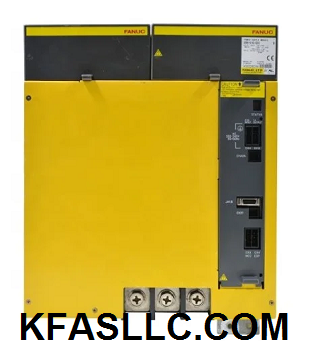

A06B-6140-H055 PSM-55i
SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
$6,550 ($900
Exchange Credit Available)
Repair/ Return Option Available At $3575.
Rated INPUT: 200-230VAC 150A@200V 50Hz/60Hz 3-phase
Rated OUTPUT: 283-325VDC 43kW
Related technical information View Picture
A06B-6140-H055 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441#39 and external cooling fan A50L-0001-0509
A06B-6140-H055 Alarms Meaning and action to be taken
AL-1 : Overcurrent
in the Main Power Module.
AL-2 : Cooling Fan
Stopped.
AL-3 : The temperature
of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage
has dropped.
AL-5 : The main
Capacitor was not recharged within the specified time.
AL-6 : The Input Power
Supply is Abnormal.
AL-7 : In the main
circuit the DC Voltage is abnormally high.
AL-A : External cooling
fan (located on heat sink) has stopped
AL-E : The Input Power
Supply is Abnormal (open phase)
