A06B-6140-H037  PSM-37i

a06b6140h037

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$3,450 ($700 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account# IF COLLECT

Repair/ Return Option Available At $2250

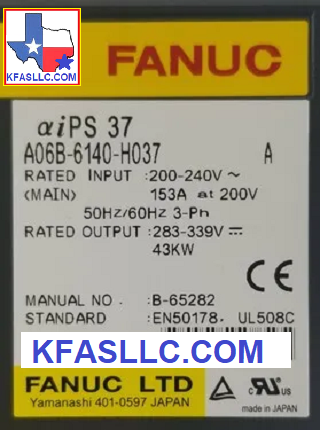

Rated INPUT: 200-230VAC  150A@200V  50Hz/60Hz  3-phase

 Rated OUTPUT: 283-325VDC  43kW

A06B6140H037 B65282E Manual

Related technical information  View Picture

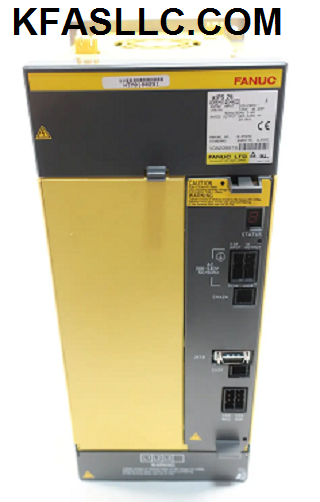

 A06B-6140-H037 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441#39 and external cooling fan A50L-0001-0509

A06B-6140-H037 Alarms Meaning and action to be taken
AL-1 : Overcurrent in the Main Power Module.
AL-2 : Cooling Fan Stopped.
AL-3 : The temperature of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage has dropped.
AL-5 : The main Capacitor was not recharged within the specified time.
AL-6 : The Input Power Supply is Abnormal.
AL-7 : In the main circuit the DC Voltage is abnormally high.
AL-A : External cooling fan (located on heat sink) has stopped
AL-E : The Input Power Supply is Abnormal (open phase)

a06b-6140-h037

Related Part NumbersKFASLLC kfasllc.com

A20B-2101-0392

A16B-2203-0632
