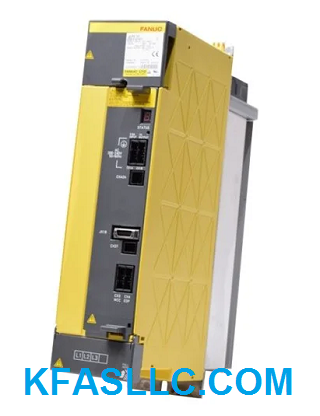

A06B-6140-H015 PSM-15i
SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
$2,250 ($600
Exchange Credit Available)
Repair/ Return Option Available At $1300

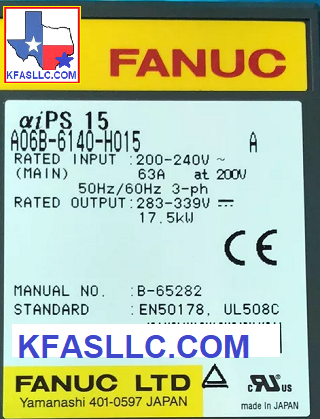

Rated INPUT: 200-230VAC 63A@200V 50Hz/60Hz 3-phase
Rated OUTPUT: 283-325VDC 17.5kW
Related technical information View Picture
A06B-6140-H015 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441 and external cooling fan A90L-0001-0508
A06B-6140-H015 Alarms Meaning and action to be taken
AL-1 : Overcurrent
in the Main Power Module.
AL-2 : Cooling Fan
Stopped.
AL-3 : The temperature
of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage
has dropped.
AL-5 : The main
Capacitor was not recharged within the specified time.
AL-6 : The Input Power
Supply is Abnormal.
AL-7 : In the main
circuit the DC Voltage is abnormally high.
AL-A : External cooling
fan (located on heat sink) has stopped
AL-E : The Input Power
Supply is Abnormal (open phase)
Related Part NumbersKFASLLC kfasllc.com
A16B-2203-0642
The Fanuc A06B-6140-H015 Power Supply Module is a high-performance spindle drive unit from the trusted Fanuc Alpha i series, engineered for precision and reliability in CNC machining environments. Designed to deliver 17.5kW of consistent power, this amplifier enhances spindle and servo control and is ideal for applications requiring high-speed and high-torque operation.
Whether you’re replacing a faulty unit or upgrading for better performance, the A06B-6140-H015 provides seamless integration with a variety of Fanuc CNC control systems and helps minimize machine downtime.
Key Features:
Model: A06B-6140-H015
Series: Alpha i
Rated Power Output: 17.5kW
Input Voltage: 220~240VAC
Cooling System: Built-in fan-cooled design
Mounting Style: Compact flange mount
Compatibility: Designed for Fanuc 0i, 16i, 18i, 21i, and 30i series CNC controls
Typical Use Cases: CNC lathes, milling machines, automated machining centers
Available Conditions: New, refurbished, and exchange units
Built for industrial reliability, this module offers accurate, stable spindle performance and is backed by expert support and fast shipping.
Note: Always confirm system compatibility before installation. Reach out to our team for technical assistance or help with product matching.
