A06B-6114-H208 SVM2-i 40/80-i

A06B-6114-H208

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,600 ($500 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account#

Repair/ Return Option Available At $950.

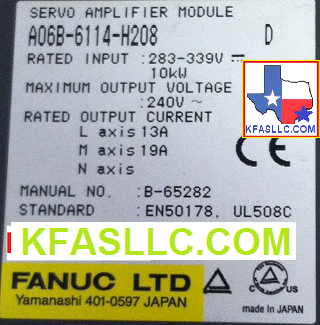

Rated Input: 283-325VDC 10 kW

Rated Output Current: L axis    13 A

                                           M axis    19 A

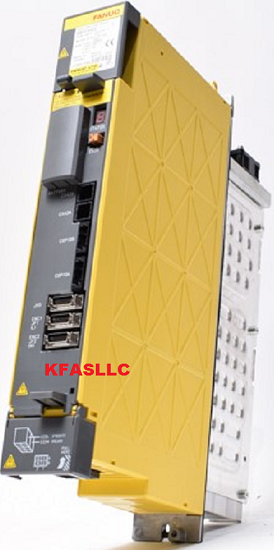

A06B-6114-H208 is a dual-axis Fanuc alpha-i servo amplifier module. It utilizes fiber optic cable to communicate with Fanuc CNC. A06B-6114-H208 is equipped with a completely redesigned high-efficiency heat sink. Unlike the previous Alpha Servo Modules, the internal cooling fan on A06B-6114-H208 can be replaced without disassembling the amplifier module. KFASLLC has A06B-6114-H208 Servo Amplifier Modules in stock for same-day shipping. A06B-6114-H208 (L-axis) is used with αiF 4/4000, αiF 8/3000. A06B-6114-H208 (M-axis) is used with αiS 8/4000, αiS 8/6000, αiS12/4000, αiF12 /3000 αiF22 /3000

A06B6114H208 B65282E Description Manual

A06B6114H208 B65285E Maintenance Manual

Related technical information

Understanding Cooling Fan Alarms

A06B-6114-H208 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
6              Inverter Overheat          Alarm "6" or "b"
F              External Cooling Fan Stop
P              Communication Error
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current     Alarm "6" or "b"
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

A06B6114H208

Related Part NumbersKFASLLC kfasllc.com
 A16B-2203-0672
A20B-2100-0741
A20B-2101-0041
A90L-0001-0510
A90L-0001-0507#A

Purchasing options for the FANUC A06B-6114-H208 Servo Amplifier Drive can be viewed in the details above. KFASLLC offers a wide selection of FANUC parts in new and refurbished condition.
If your FANUC A06B6114H208 drive needs to be repaired, we also offer 2 business days turnaround. Be sure to also check out our core credit exchange program for this and other products.
KFASLLC offers a huge variety of other FANUC CNC Drives and other FANUC parts in our online store.

Fanuc Alpha Servo A06B-6114-H208 features
・high power and high acceleration due to optimum winding design and effective cooling structure.
・Increased torque at low speed range
・Super High precision and high resolution Alpha-iA pulse coder feedback (16,000,000 pulses/rev)
・Available with both 200V input and 400V input
・Compact size with latest intelligent Power Module (IPM) technology.
・Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.
