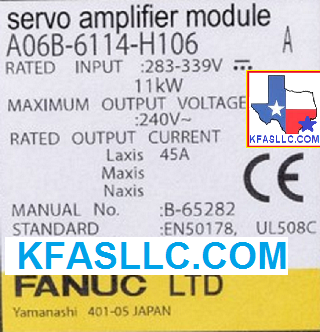

A06B-6114-H106 SVM-i 1-160i

a06b6114h106

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,200 ($300 Exchange Credit Available)

Select Shipping Option
Your UPS Account#

Repair/ Return Option Available At $800.

Rated Input: 283-325VDC 11 kW

Rated Output Current: L axis    45 A

A06B6114H106 B65282E Description Manual

A06B6114H106 B65285E Maintenance Manual

Related technical information

Understanding Cooling Fan Alarms

A06B-6114-H106 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
6              Inverter Overheat          Alarm "6" or "b"
F              External Cooling Fan Stop
P              Communication Error
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current     Alarm "6" or "b"
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

Related Part NumbersKFASLLC kfasllc.com
A16B-2203-0662
A20B-2100-0740
A20B-2101-0040
A90L-0001-0510
A90L-0001-0507#B

Purchasing options for the FANUC A06B-6114-H106 Servo Amplifier Drive can be viewed in the details above. KFASLLC offers a wide selection of FANUC parts in new and refurbished condition.
If your FANUC A06B6114H106 drive needs to be repaired, we also offer 2 business days turnaround. Be sure to also check out our core credit exchange program for this and other products.
KFASLLC offers a huge variety of other FANUC CNC Drives and other FANUC parts in our online store. A06B-6114-H106 (M-axis) αiS22/4000, αiS30/4000, αiS40/4000, αiF30/3000, αiF40/3000, αiF40/3000 FAN

Fanuc Alpha Servo A06B-6114-H106 features
・high power and high acceleration due to optimum winding design and effective cooling structure.
・Increased torque at low speed range
・Super High precision and high resolution Alpha-iA pulse coder feedback (16,000,000 pulses/rev)
・Available with both 200V input and 400V input
・Compact size with latest intelligent Power Module (IPM) technology.
・Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.
