A06B-6110-H037  PSM-37i

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

A06B-6110-H037

$2,700 ($700 Exchange Credit Available)

Repair Fee: $1300

Select Desire Shipping Option
Your UPS Account# IF COLLECT

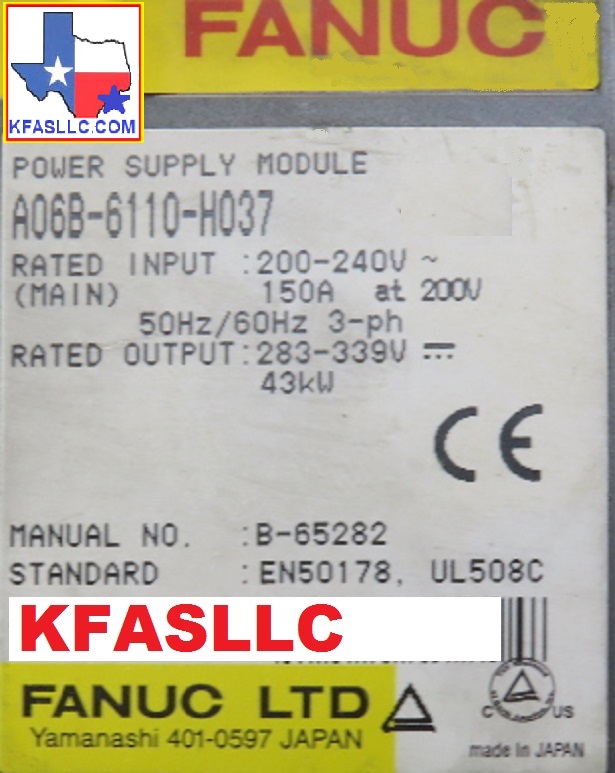

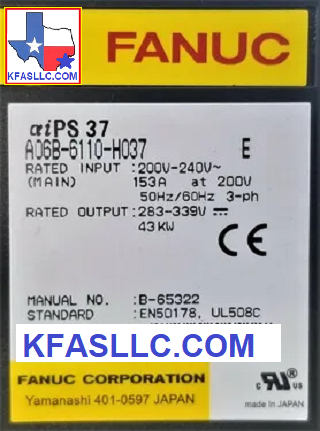

Rated INPUT: 200-230VAC  150A@200V  50Hz/60Hz  3-phase

 Rated OUTPUT: 283-325VDC  43kW

A06B6110H037 B65282E Manual

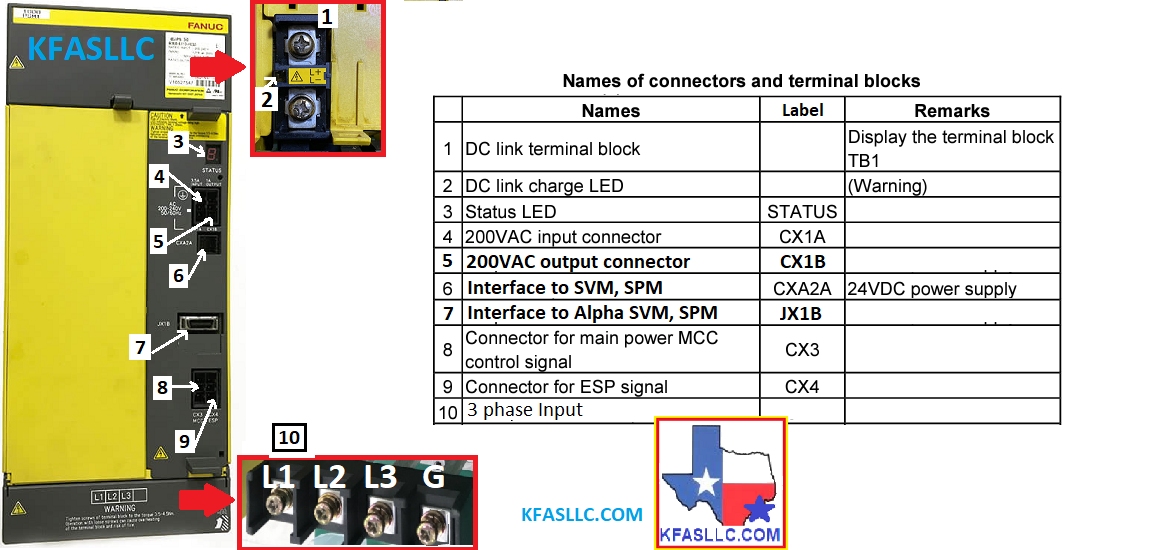

Related technical information  Connector Info

 A06B-6110-H037 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441#39 and external cooling fan A90L-0001-0509

A06B-6110-H037 Alarms Meaning and action to be taken
AL-1 : Overcurrent in the Main Power Module.
AL-2 : Cooling Fan Stopped.
AL-3 : The temperature of the main circuit heat sink has risen abnormally.

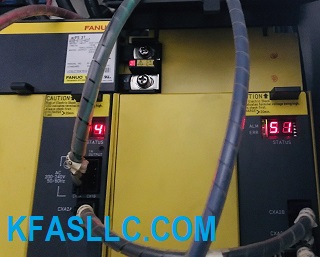

AL-4 : The DC Voltage has dropped.
AL-5 : The main Capacitor was not recharged within the specified time.
AL-6 : The Input Power Supply is Abnormal.
AL-7 : In the main circuit the DC Voltage is abnormally high.
AL-A : External cooling fan (located on heat sink) has stopped
AL-E : The Input Power Supply is Abnormal (open phase)

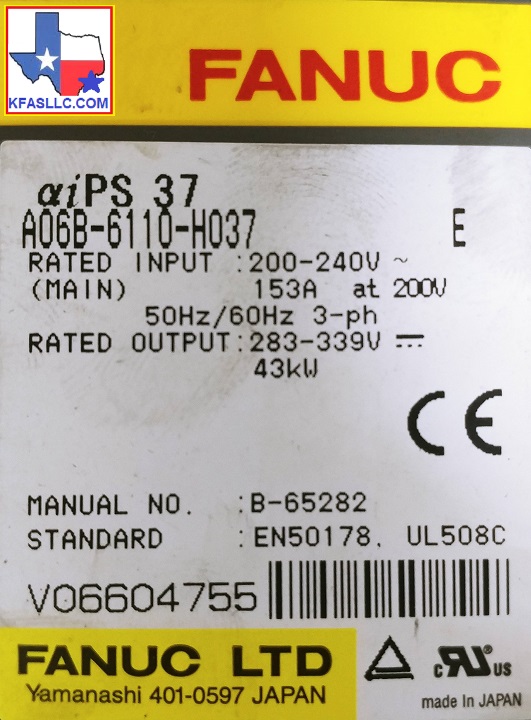

A06B-6110-H037 V06604755

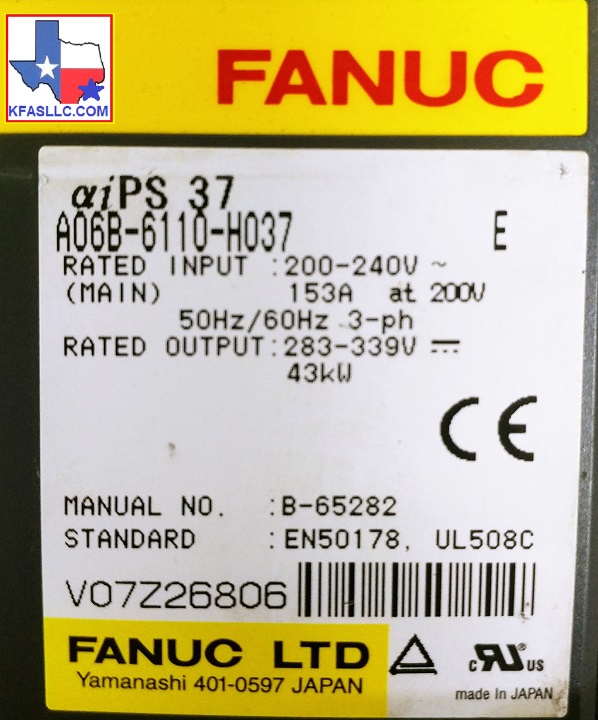

A06B-6110-H037 V07Z26806

Related Part NumbersKFASLLC kfasllc.com

A20B-2100-0761

A20B-2100-0762

A20B-2101-0392

A16B-2203-0632

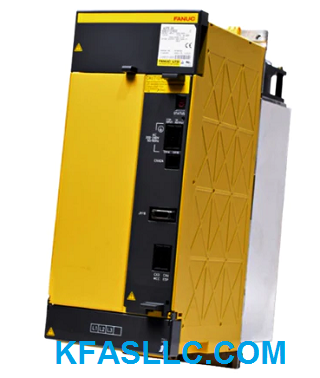

A06B-6110-H037 is part of Fanuc Alpha-i Series family with advanced features including
Utilizes Power source regeneration technology to return regeneration energy of the motor to a power source. Compared with the resistor regeneration, power consumption is greatly reduced.
Compact, reduced Wiring utilizing fiber optics communications and easy maintenance features such as ability to replace cooling fans without disassembling the unit.
