SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
$1,975 ($650
Exchange Credit Available)
Repair Fee: $1355
Repair/ Return Option Available At $1100

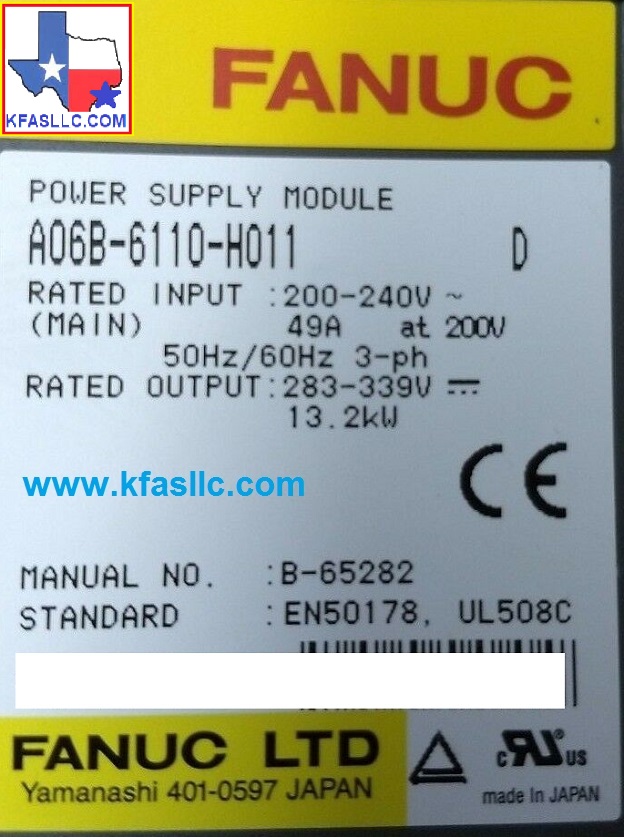

Rated INPUT: 200-230VAC 49A@200V 50Hz/60Hz 3-phase
Rated OUTPUT: 283-325VDC 13.2kW

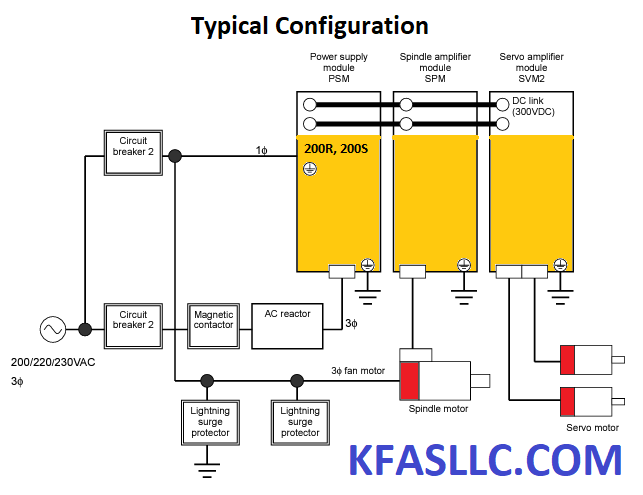

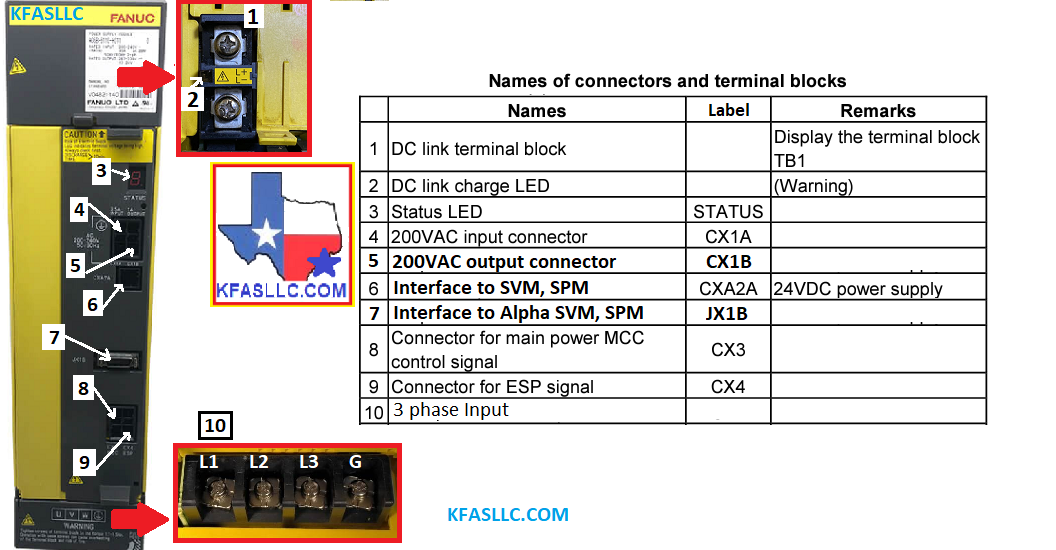

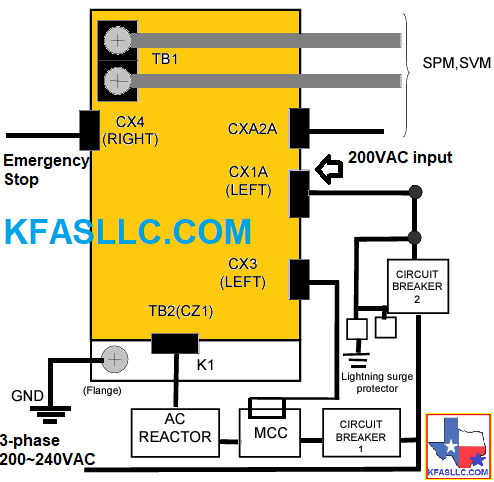

Related technical information Connection Info
A06B-6110-H011 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441 and external cooling fan A90L-0001-0508
A06B-6110-H011 Alarms Meaning and action to be taken
AL-1 : Overcurrent in the Main Power Module.
AL-2 : Cooling Fan Stopped.
AL-3 : The temperature of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage has dropped.
AL-5 : The main Capacitor was not recharged within the specified time.
AL-6 : The Input Power Supply is Abnormal.
AL-7 : In the main circuit the DC Voltage is abnormally high.
AL-A : External cooling fan (located on heat sink) has stopped
AL-E : The Input Power Supply is Abnormal (open phase)
Related Part NumbersKFASLLC kfasllc.com

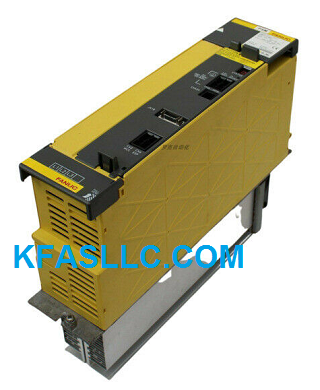

A20B-2100-0761Model: A06B-6110-H011
Type: Alpha I Series Power Supply Module
Tested and verified for full functionality
Compatible with a wide range of FANUC CNC systems
Compact, robust design for easy installation
Fast shipping and technical support available
Competitive pricing
Fast, reliable delivery
12 Month Warranty included
Trusted source for authentic FANUC parts
Expert support from experienced CNC technicians
A06B-6110-H011 is part of Fanuc Alpha-i Series family with advanced features including
・Utilizes Power source regeneration technology to return regeneration energy of the motor to a power source. Compared with the resistor regeneration, power consumption is greatly reduced.
・Compact, reduced Wiring utilizing fiber optics communications and easy maintenance features such as ability to replace cooling fans without disassembling the unit.
This module is fully tested, in stock, and ready to
ship. Backed by expert technical support and a warranty, it’s the dependable
solution for maintaining uptime in demanding industrial settings.
