SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
$1,825 ($650
Exchange Credit Available)

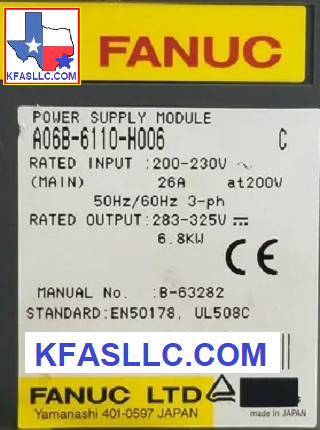

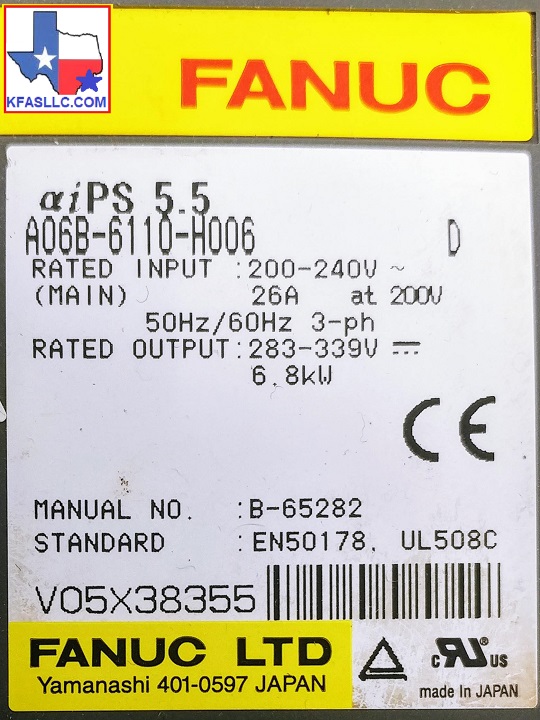

Rated INPUT: 200-230VAC 26A@200V 50Hz/60Hz 3-phase
Rated OUTPUT: 283-325VDC 6.8kW

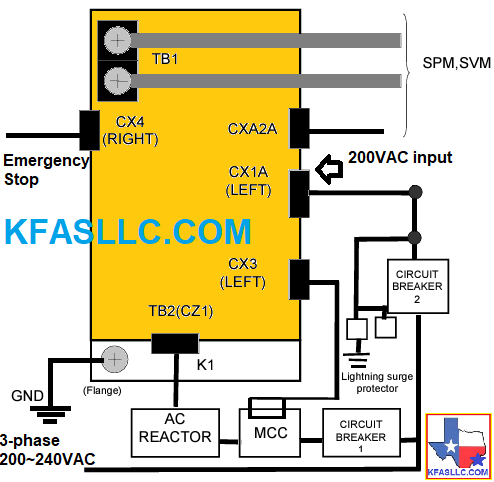

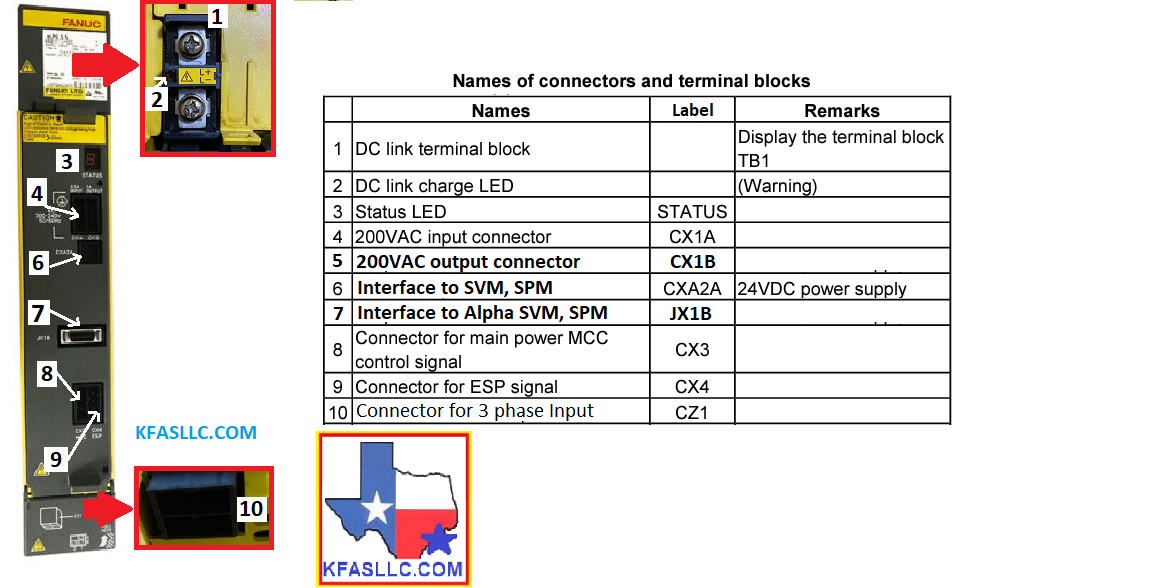

Related technical information Connection Info

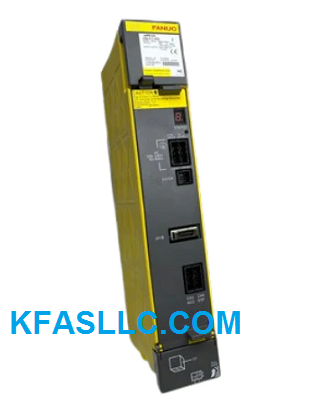

A06B-6110-H006 Alpha-i Power Supply Module uses internal cooling fan A90L-0001-0441
A06B-6110-H006 Alarms Meaning and action to be taken
AL-1 : Overcurrent in the Main Power Module.
AL-2 : Cooling Fan Stopped.
AL-3 : The temperature of the main circuit heat sink has risen abnormally.
AL-4 : The DC Voltage has dropped.
AL-5 : The main Capacitor was not recharged within the specified time.
AL-6 : The Input Power Supply is Abnormal.
AL-7 : In the main circuit the DC Voltage is abnormally high.
AL-A : External cooling fan (located on heat sink) has stopped
AL-E : The Input Power Supply is Abnormal (open phase)
Related Part NumbersKFASLLC kfasllc.com
A20B-2100-0761A06B-6110-H006 is part of Fanuc Alpha-i Series family with advanced features including
・Utilizes Power source regeneration technology to return regeneration energy of the motor to a power source. Compared with the resistor regeneration, power consumption is greatly reduced.
・Compact, reduced Wiring utilizing fiber optics communications and easy maintenance features such as ability to replace cooling fans without disassembling the unit.
