SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
Repair/ Return Option Also Available At $900.
E-mail: service@kfasllc.com
$1,700 ($500
Exchange Credit Available)

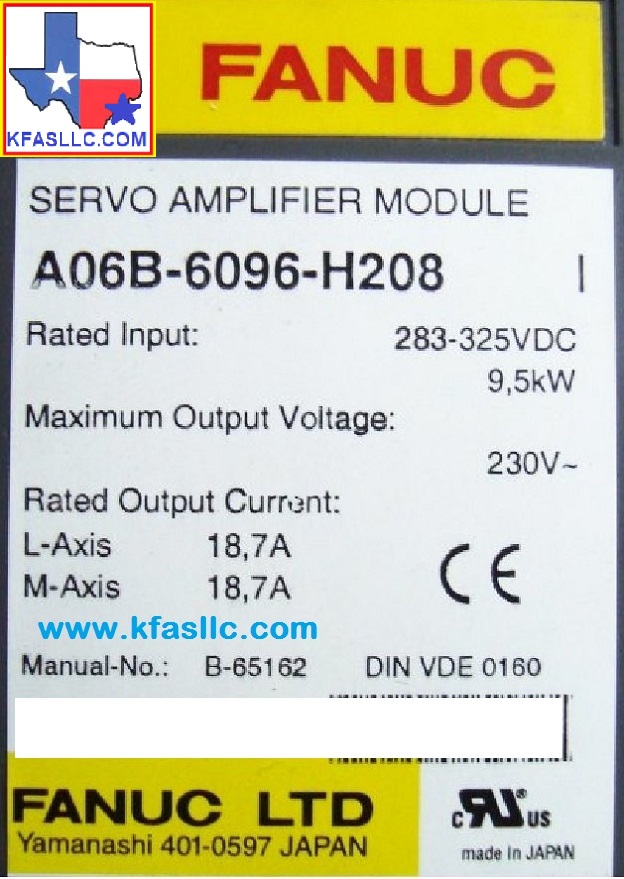

Dimensions (H 380 x W 90 x D 307 mm)
Rated Input: 283-325VDC 9.5 kW
Rated Output Current: L axis 18.7A, M axis 18.7A
Alarm 368 369 Note Alarm 466 Note
A06B-6096-H208 Alarms Meaning and action to be taken
Alarm Meaning
1
Internal Fan Stopped (FAL)
2
Low control power voltage (LV5V)
5
Low DC link voltage (LVDC)
8
L-axis over-current (HCL)
9
M-axis over-current (HCM)
A
N-axis over-current (HCN)
b L
& M-axis over-current
C M
& N-axis over-current
d L
& N-axis over-current
E
L, M, N -axis over-current
8.
L-axis IPM alarm (IPML)
9.
M-axis IPM alarm (IPMM)
A.
N-axis IPM alarm (IPMN)
b. L
& M-axis IPM alarm
C. M
& N-axis IPM alarm
d. L
& N-axis IPM alarm
E.
L, M, N-axis IPM alarm
L FSSB
Disconnect COP10A
U FSSB
Disconnect COP10B

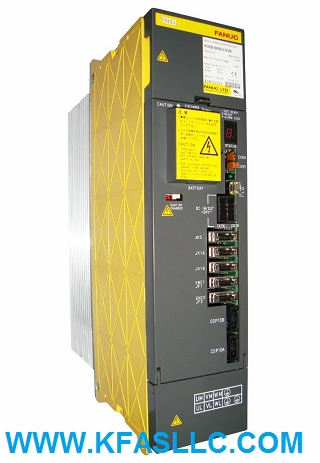

Fanuc Alpha Servo A06B-6096-H208 features
・high power and high acceleration due to optimum winding design and effective cooling structure.
・Increased torque at low speed range
・High precision and high resolution pulse coder feedback (1000000 pulses/revolution)
・Available with both 200V input and 400V input
・Compact size with latest intelligent Power Module
(IPM) technology.
・Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.
Related Part NumbersKFASLLC kfasllc.com
A50L-0001-0329
A230-0526-X001/B
A230-0527-X001/A
A230-0527-X002
A20B-2100-0253 or A20B-2100-0543
A16B-2202-0774
A16B-2203-0594
A90L-0001-0385
©
