KFAS: Fanuc Parts & Repair

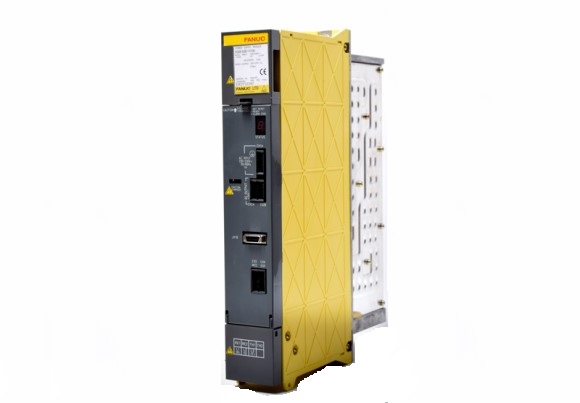

A06B-6081-H106  PSMR-5.5

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,400 ($300 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account# & Method

Repair/ Return Option Also Available At $700.

Rated INPUT: 200-230VAC  14.5A@200V  50Hz/60Hz  3-phase

Rated OUTPUT: 283-325VDC  3.8kW

A06B6081H106 B65162E Manual

Related technical information  View Picture

A06B-6081-H106 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 : Cooling Fan Stopped.
AL-03 : The temperature of the main circuit heat sink has risen abnormally.
AL-04 : The DC Voltage has dropped.
AL-05 : The main Capacitor was not recharged within the specified time.
AL-06 : The Input Power Supply is Abnormal.
AL-07 : In the main circuit the DC Voltage is abnormally high.
