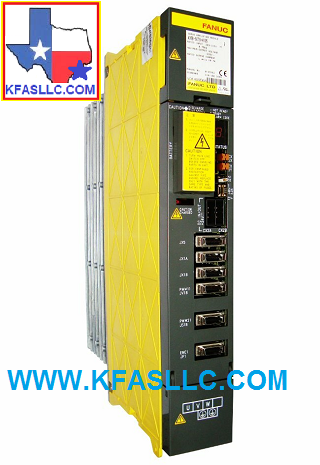

A06B-6079-H105  SVM1-80

A06B-6079-H105

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$900 ($200 Exchange Credit Available)

Select Shipping Option
Your UPS Account# to collect

Dimensions (H 380 x W 60 x D 307 mm)

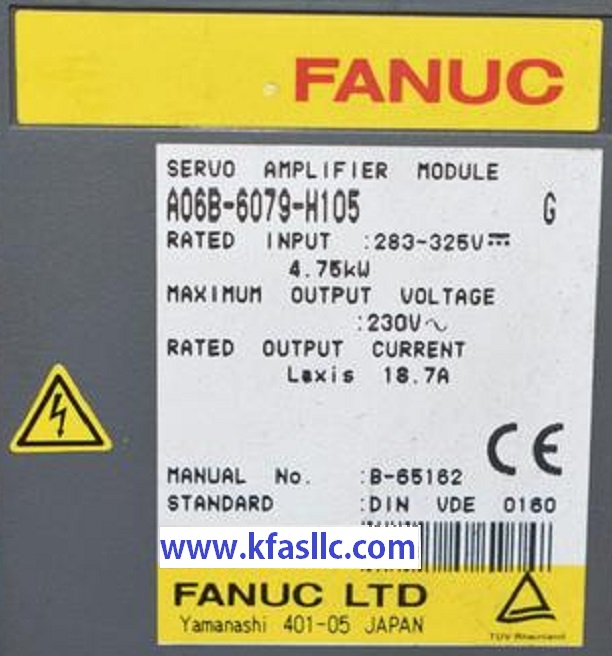

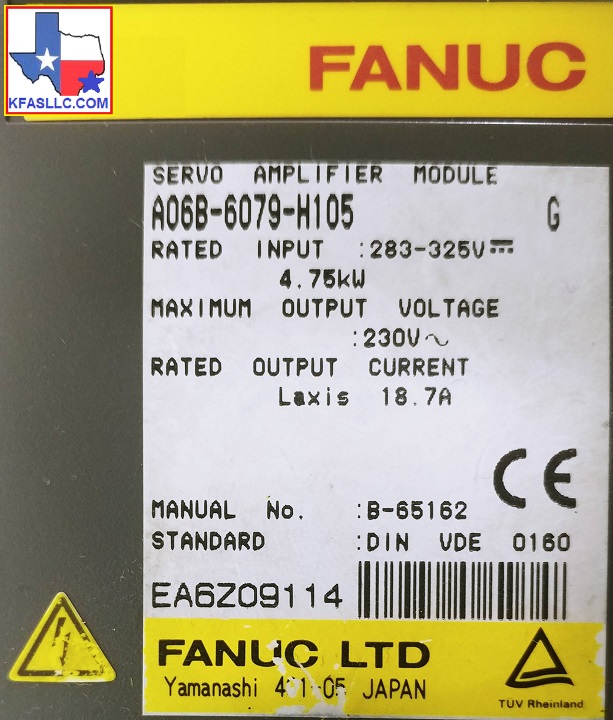

Rated Input: 283-325VDC 4.75 kW

Rated Output Current: L axis    18.7 A

Fanuc A06B-6079-H105 is typically used with Fanuc motor a6/3000, a22/2000, aL9/3000, a30/1200

A06B6079H105 B65165E Manual

Related technical information

A06B-6079-H105 Jumper S1 S2

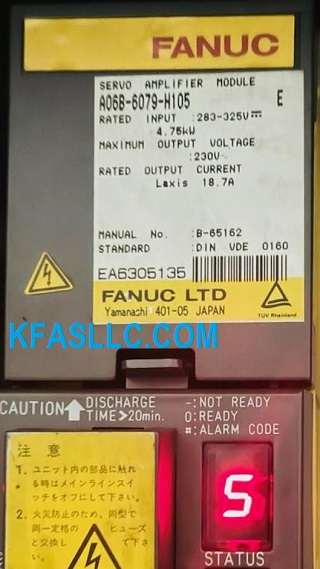

A06B-6079-H105 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm

A06B-6079-H105 is typically used with Fanuc 16MC, 16MA, 18TA, 18MC, 21TB, 16TB, 18TB, and 21MB controls.
Typically found on machines such as Mori Seiki SL-250

Fanuc Servo Amplifier A06B-6079-H105 Alarm 8, Alarm 8. indicates high current or short circuit in the servo amplifier or motor.

Troubleshooting Steps for Alarm-8, Alarm-8.
(1) Power off the machine. Remove the power line wires from the servo amplifier terminals, and be sure to place them so that there is no chance or shorting out something in the electrical cabinet. Power ON the machine/ control and release an emergency stop. If an abnormal current alarm occurs, go to (3). If not, go to (2).

(2) Check for insulation between PE and each of the removed power wires U, V, and W.  Good/ acceptable insulation is in the order of several HUNDRED MEGA OHMS or higher.
If not, disconnect the power wires from the motor.  Then check for insulation again between PE and each of the U, V, and W terminals on the motor itself. If there is a short circuit between PE and  U, V, or W of the motor, replace the motor. If motor insulation is tested good, replace the motor power wires.

Fanuc Alpha Servo A06B-6079-H105 features
high power and high acceleration due to optimum winding design and effective cooling structure.
Increased torque at low speed range
High precision and high resolution pulse coder feedback (1000000 pulses/revolution)
Available with both 200V input and 400V input
Compact size with latest intelligent Power Module (IPM) technology.
Utilize power source regeneration technology to return regeneration energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.

Related Part NumbersKFASLLC kfasllc.com
A50L-0001-0305
A230-0526-X001/B
A230-0527-X001/A
A230-0527-X002
A20B-2001-0930
A16B-2202-0762 or A16B-2203-0452
A90L-0001-0385

A06B-6079-H105 EA6Z09114
