KFAS: Fanuc Parts & Repair
SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME
$1,225 ($300 Exchange Credit Available)

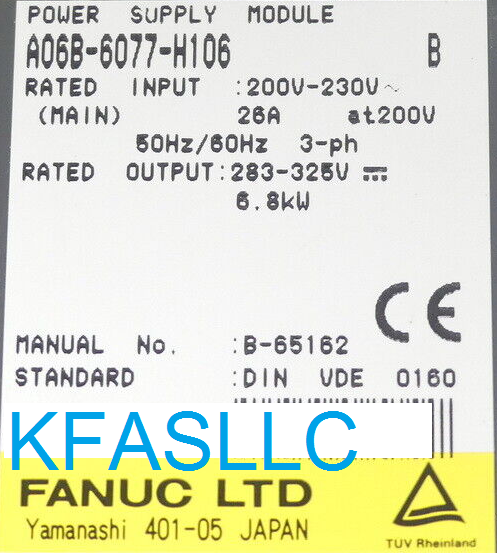

Rated INPUT: 200-230VAC 26A@200V 50Hz/60Hz 3-phase
Rated OUTPUT: 283-325VDC 6.8kW
A06B6077H106 B65162E Manual
Related technical information Technical Info
A06B-6077-H106 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 : Cooling Fan Stopped.
AL-03 : The temperature of the main circuit heat sink has risen abnormally.
AL-04 : The DC Voltage has dropped.
AL-05 : The main Capacitor was not recharged within the specified time.
AL-06 : The Input Power Supply is Abnormal.
AL-07 : In the main circuit the DC Voltage is abnormally high.
A06B-6077-H106 is typically used with Fanuc 16iTA, 16iMA, 18iTA, 18iMA,
21iTA, and 21iMA controls.
Typically found on machines such as Star CNC
