When contacting us, please include Fanuc control model and Machine model and serial number.
Fanuc parameter backup procedures
CL-25A
CL-25B
CL-25B with Fanuc 21TB control
X axis motor: A06B-0128-B075
Y axis motor: A06B-0147-B075
X & Z axis
servo: A06B-6079-H208
Spindle motor: A06B-0831-B901
Spindle Amp:
A06B-6088-H330
Power Supply Module: A06B-6087-H115
21TB control
A20B-2901-0761
A16B-2203-0045
A16B-3200-0045
A20B-1005-0421
A20B-1006-0260
A20B-2901-0660
CL-25A with Fanuc 18TB control
X axis motor: A06B-0128-B075
Y axis motor: A06B-0147-B075
X & Z axis
servo: A06B-6079-H208
Spindle motor: A06B-0831-B901
Spindle Amp:
A06B-6088-H330
Power Supply Module:
A06B-6087-H130
18TB control
A20B-2002-0020
A16B-1212-0901
A16B-2202-0726
A16B-2202-0860
A20B-2902-0271
A20B-2901-0961
A20B-2902-0341
A20B-2901-0941
A20B-2902-0070
A20B-2002-0020 Backplane PCB
A16B-1212-0901 POWER SUPPLY AI
A16B-2202-0726 F16 DI/DO:104/72 W/O SKIP
A16B-2202-0860 F18B MAIN CPU
A20B-2901-0981 F16B SPINDLE MODULE SERIAL
A20B-2902-0271 F16/18B 9" CRT CONTROL
A20B-2901-0961 PMC PMP2A
A20B-2902-0341 F18B FROM MODULE 4MB
A20B-2901-0941 DRAM 4MB
A20B-2902-0070 F16B/C SERVO MODULE
A02B-0120-C111 CRT UNIT 9INCH MONO SEPARATE
A02B-0120-C122/TA MDI UNIT FULLKEY A02B-0120-C122/TAR
A860-0202-T001 M.P.G. W/O FLANGE A860-0203-T001
A860-0392-T013 BUILT-IN SENSOR W/RING O.DIA/I.DIA 206MM/160MM
A06B-0128-B075 X-AXIS AC MOTOR A6/3000 A64 PULSE
A06B-0147-B075 Z-AXIS AC MOTOR A22/2000 A64 PULSE
A06B-6079-H208 SERVO AMP MODULE ALPHA-80/80 2AXES
A06B-0831-B901 AC SPINDLE MOTOR AP40 FOOT MOUNT A06B-0831-B901/0C40
A06B-6088-H330 SPINDLE AMP MODULE SPM-30 C-AXIS CONTROL ALPHA SP AP60
A06B-6087-H130 POWER SUPPLY MODULE PSM-30

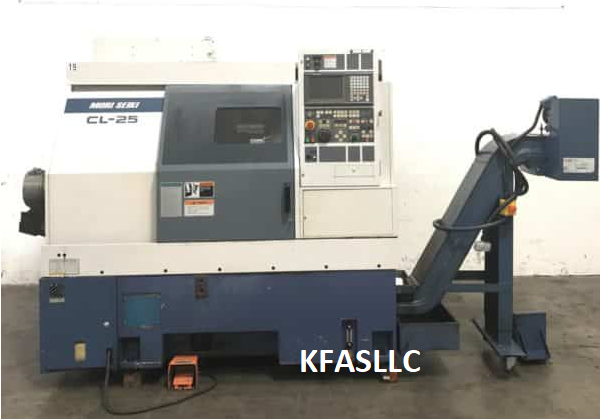

Mori Seiki CL-25 Specifications
Turning length 450 mm
Turning Ø 370 mm
Ø above the bed 520 mm
Ø above transversing slide 410 mm
Length between centers 480 mm
X-axis 260 mm
Z-axis 500 mm
Spindle taper ASA 8
Spindle bore 80 mm
Number of tools on turret 10
Turning speed 3000 rpm
Spindle motor power 15 kW
Available options: Tailstock, Bar feeder
-------------------
Length x width x height 2000.0 × 1736.0 × 1955.0
Unlock
Peak Performance for Your Mori Seiki CL25 CNC Machines!
At KFASLLC, we’re your trusted partner for keeping your Mori
Seiki CNC machines running smoothly. Whether you’re dealing with
complex alarm codes or seeking high-quality replacement parts, our expert team
is ready to help.
✅ Troubleshooting
Support:
Our technicians specialize in diagnosing and resolving Mori Seiki CNC alarms
quickly and efficiently, minimizing downtime and restoring productivity.
✅ OEM
and Refurbished Fanuc CNC Parts:
We stock a wide range of genuine Fanuc CNC parts for your Mori Seiki machines,
including motors, drives, and control units – all tested and backed by
warranty.
✅ Personalized
Service:
Every job is unique. We tailor our troubleshooting and parts solutions to your
specific machine model and needs, ensuring seamless integration and reliable
performance.
Contact us today to get expert help with your Mori Seiki CNC machines. Let’s keep your operations running at their best!
