When contacting us, please include Fanuc control model and Machine model and serial number.
Fanuc parameter backup procedures

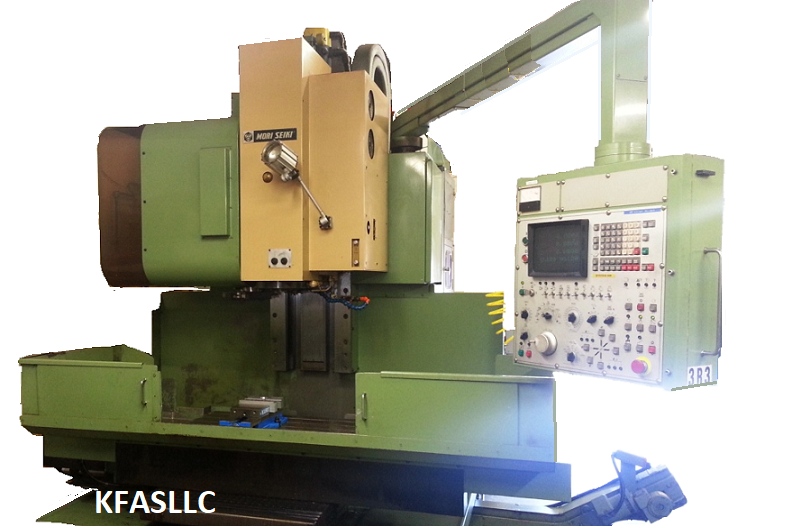

MV-45 with Fanuc 6M
MV-45 with Fanuc 11M

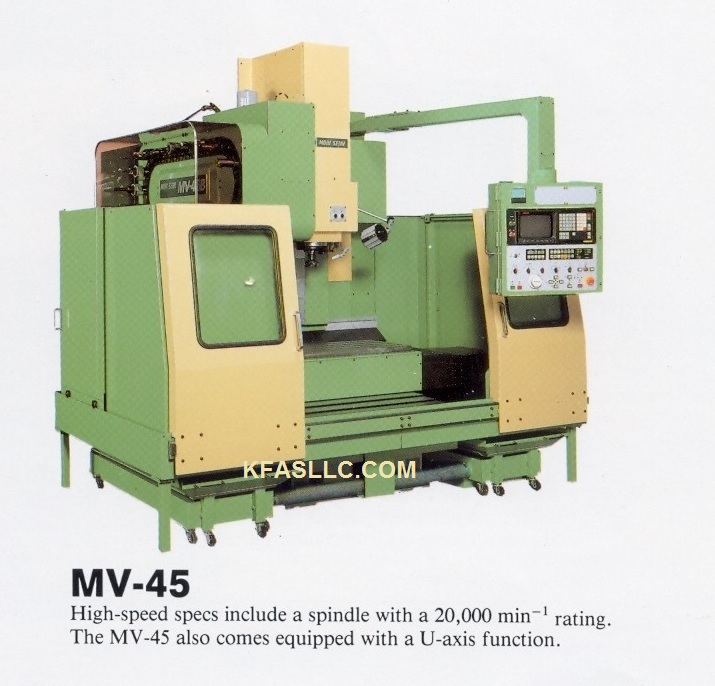

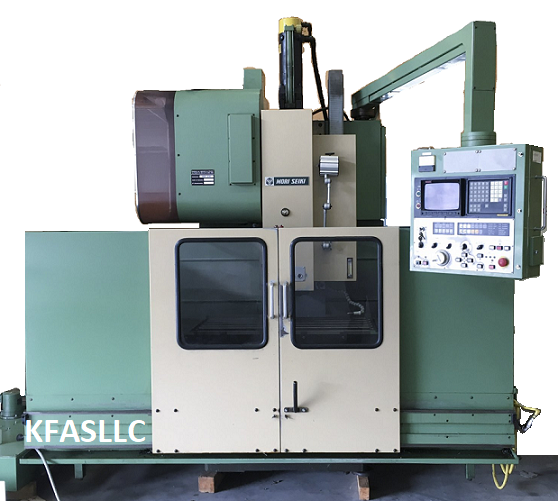

MV-45
Spindle Drive Unit: A06B-6064-H312#550 or
A06B6063-H212#510K
A20B-1004-0730
A20B-2000-0220
A16B-2201-0440
Spindle Motor:
A06B-0756-B390 or
A06B-1012-B202
X Drive Unit: A06B-6066-H004
Y Drive Unit:
A06B-6066-H004
Z Drive Unit: A06B-6066-H006
X Motor:
A06B-0505-B0072 or B032
Y Motor: A06B-0505-B0072 or B032
Z Motor: A06B-0590-B072 or B032
