Since Fanuc does not manufacture items like cooling fans, batteries, and fuses, you must use the Fanuc/GE Fanuc part number to find the correct replacement.
Note that Fanuc cooling fans are unique; unlike standard fans found at local electronics stores, they include a yellow or white sensor wire.
This wire connects to an internal sensor that monitors the motor's current. Because of this specific safety feature, these fans are generally unavailable from local or third-party sources.
Please use the cross-reference list below to match the manufacturer's part number to the required Fanuc part number.
Batteries
Panasonic CR17450SE-R (3 volt)
A98L-0031-0012
Used for Memory backup 15B, 16i/18i/21i, 16B/18B
Panasonic BR-2/3AC2SP (3 volt)
A98L-0031-0006
Memory backup 16B/18B, 16A, 21A, 21B, PowerMate
Panasonic BR-C (3 volt)
A98L-0031-0007
16A/18A
Panasonic BR-CCF2TH (6 volt)
A98L-0001-0902
Absolute pulse coder alpha series
When
ordering cooling fans for Fanuc Alpha series Power Supply Modules, Spindle
Amp Modules and Servo Amp Modules,
be sure to check the dimensions
of the fan itself and the type of connector. Consult
the relevant Fanuc manual for instructions
on how to disassemble the units.
Here are some helpful information relating to the cooling fans.
Cooling Fans
NMB 3610ML-05W-B49
FBK09A24M
A90L-0001-0378
Fanuc 16/ 18 TA, MA, TB, MB, TC, MC CPU cooling fan
Panaflo FBA06T24H
,
NMB 2406KL-05W-B59
A90L-0001-0423
A90L-0001-0423/300 (with 300mm cable)
A90L-0001-0423/150 (with 150mm)
Panaflo FBK08T24HS
A90L-0001-0422
Internal cooling fan for Alpha series Power Supply Module (PSM)
& Alpha series Spindle Amplifier Module (SPM)
Panaflo FBK09A24MSA
A90L-0001-0378/A
Sanyo 109P0424H6D03

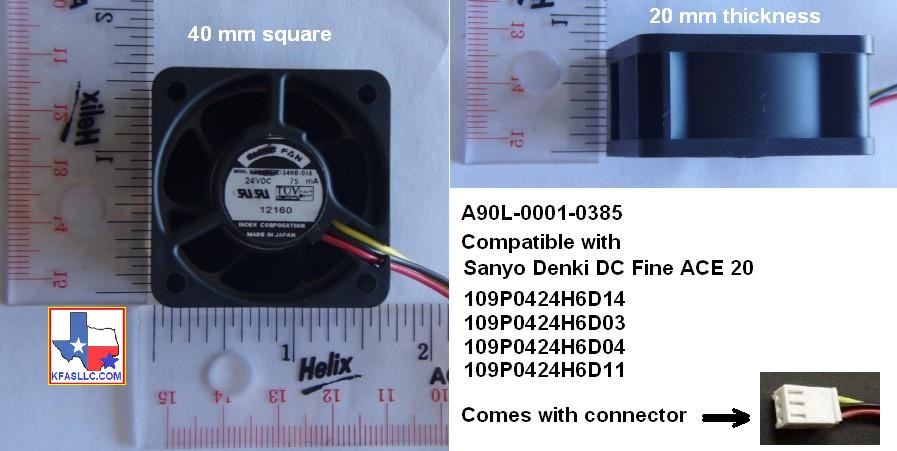

A90L-0001-0385
Sanyo Denki DC Fine Ace 20 with 80mm cable
Sanyo 109P0424H6D04
A90L-0001-0385/A
Sanyo Denki DC Fine Ace 20 with 95mm cable
Sanyo 109P0424H6D11
A90L-0001-0385/B
Sanyo Denki DC Fine Ace 20 with 250mm cable
Sanyo 109P0424H6D14
A90L-0001-0385/T
Sanyo Denki DC Fine Ace 20 with 40mm cable
Sanyo 109P0424H7D08
A90L-0001-0441
Sanyo Denki DC Fine Ace 15 with 70mm cable
Sanyo 109P0424H7D13
A90L-0001-0441/100
Sanyo Denki DC Fine Ace 15 with 100mm cable
Sanyo 109P0424H7D20
A90L-0001-0441/39
Sanyo Denki DC Fine Ace 15 with 39mm cable
Toyo UTHS457C
A90L-0001-0335/B
AC 220V
Style Electric US12D23
A90L-0001-0335/B
NMB 1608KL-05W-B39
A90L-0001-0507/B
40mm x 40mm x 20mm
NMB 1608KL-05W-B39
A90L-0001-0510
40mm x 40mm x 20mm
NMB 2406KL-05W-B39
A90L-0001-0511
60mm x 60mm x 15mm
NMB 1608KL-05W-B39
A90L-0001-0507/A
40mm x 40mm x 20mm
NMB 2410ML-05W-B39
A90L-0001-0508
60mm x 60mm x 25mm
NMB 4715KL-05W-B39
A90L-0001-0509
119mm x 119mm x 38.4mm
