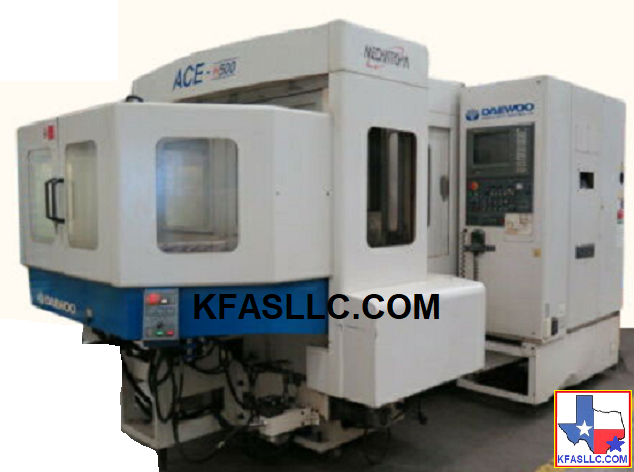

DAEWOO ACE H500
WARNING: In general, parameter settings are unique to each machine and it is NOT recommended to use parameters from one machine for another.
When contacting us, please include your machine model & serial number as well as the Fanuc control model.
Fanuc
parameter backup procedures
Daewoo Ace-H500 with Fanuc 16MC
A16B-1212-0901 POWER SUPPLY AI
A16B-3200-0190 F16C MAIN CPU I486/DX
A20B-2902-0070 F16B/C SERVO MODULE NEW
A20B-2901-0981 SPINDLE CONTROL MODULE SERIAL
A20B-2902-0480 PMC 32KSRAM 256KDRAM W/IO LINK
A20B-2902-0490 F16/F18 HI SPEED BUS CONTROL
A20B-2901-0942 DRAM 2MB
A20B-2902-0343 FROM MODULE 2MB
A02B-0222-C071/MBR MDI/CRT UNIT 14INCH HORIZONTAL
A06B-0127-B075 AC MOTOR A6/2000 A64 PULSE
A06B-0142-B075 AC MOTOR A12/2000 A64 PULSE
A06B-0142-B175 AC MOTOR A12/2000 A64 W/BRAKE
A06B-0147-B075 AC MOTOR A22/2000 A64 PULSE
A06B-6079-H206 SERVO AMP MODULE ALPHA-40/40 2AXES
A06B-6079-H207 SERVO AMP MODULE ALPHA-40/80 2AXES
A06B-6087-H130 POWER SUPPLY MODULE PSM-30

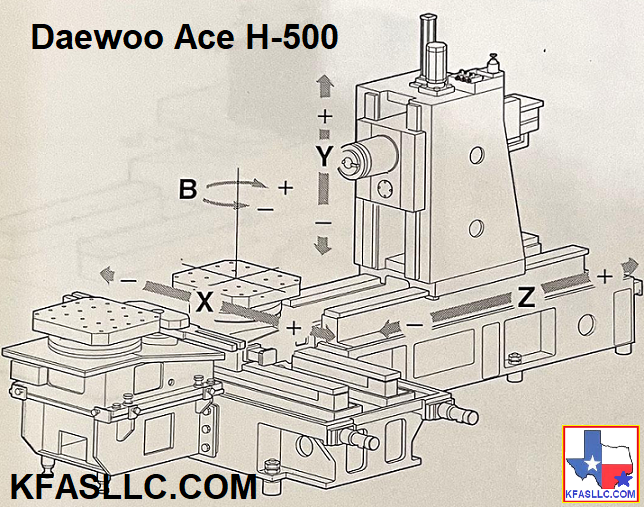

ACE H500 Specifications
X-axes: 800 mm
Y-axes: 650 mm
Z-axes: 650 mm
Table dimensions: 500 x 500 mm (indexing 1°)
Spindle: 11/15 kW
Tools: 40 positions
Number of pallets: 2
Length: 3420 mm
Depth: 5200 mm
Height: 3040 mm
Weight: 12.5 ton
