Fanuc A16B-3200-0210 A16B32000210

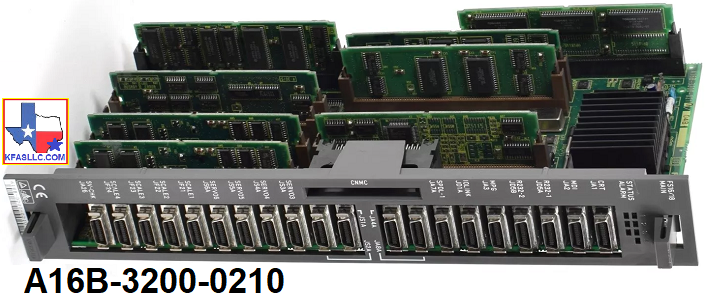

Fanuc PCB A16B-3200-0210 is Fanuc 18-C Main CPU Board.
A16B-3200-0210 is capable of controlling up to 8 axes.
Manual B-62755EN
contains information on A16B-3200-0210.
RECONDITIONED AND TESTED. Contact us today to inquire.

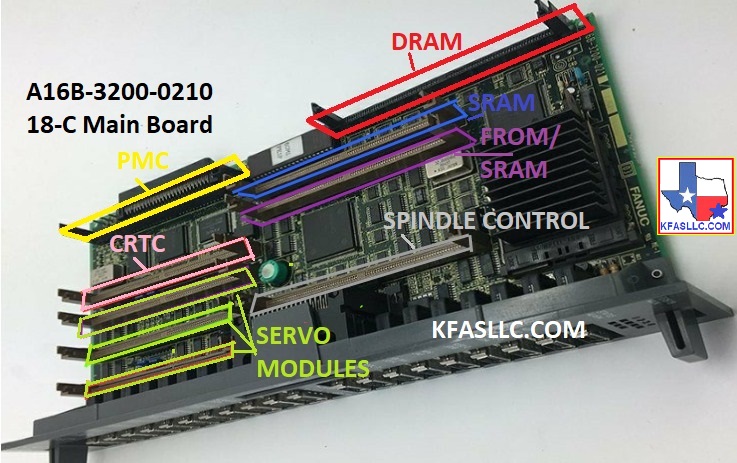

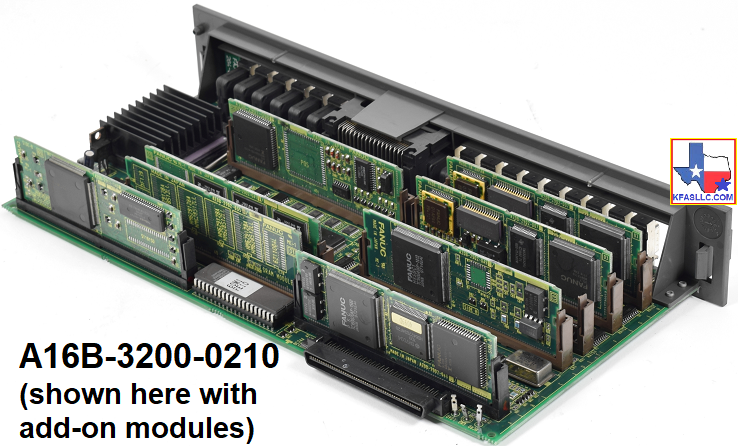

The following list is for reference ONLY. Modules are NOT INCLUDED
(1) DRAM module
A20B–2901–0941 DRAM:4MB
A20B–2901–0942 DRAM:2MB
A20B–2902–0461 DRAM:8MB
(2)Expanded SRAM module
A20B–2902–0350 SRAM:256KB
A20B–2902–0351 SRAM:768KB
A20B–2902–0352 SRAM:2.25MB
(3)FROM/ SRAM
A20B–2902–0341 FLASH ROM MODULE:4MB
A20B–2902–0343 FLASH ROM MODULE:2MB
A20B–2902–0411 FLASH ROM MODULE:6MB
A20B–2902–0501 FLASH ROM MODULE:8MB
A20B–2902–0500 FLASH ROM MODULE:12MB
(4)Spindle Module
A20B–2901–0980 SERIAL SPINDLE LSI
ANALOG SPINDLE LSI
A20B–2901–0981 SERIAL SPINDLE LSI
A20B–2901–0982 ANALOG SPINDLE LSI
(5)PMCmodule
A20B–2902–0480 PMC MODULE with SLC MOUNTED
A20B–2902–0481 PMC MODULE no SLC
(6)CRTC Control Module
A20B–2902–0490 HSSB
A20B–2902–0271 CRTC MODULE:9”
A20B–2902–0275 CRTC MODULE:VGA
A20B–2902–0276 CRTC MODULE:9”CRT
(7)Servo module
A20B–2902–0070
A20B–2902–0061
