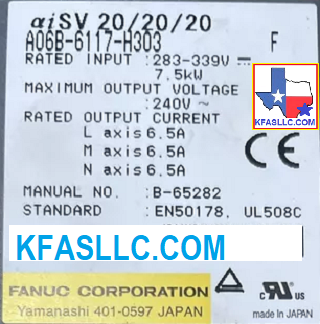

A06B-6117-H303 SVM3-i 20/20/20-i
Rated Input: 283-325VDC 7.5 kW
Rated Output Current: L axis 6.5 A
M axis 6.5 A
N axis 6.5 A
Understanding Cooling Fan Alarms
A06B-6117-H303 Alarms Meaning and action to be taken
Alarm Meaning
1
Internal Fan Stopped (FAL)
2
Low control power voltage (LV5V)
5
Low DC link voltage (LVDC)
6
Inverter Overheat Alarm
"6" or "b"
F
External Cooling Fan Stop
P
Communication Error
8
L-axis over-current (HCL)
9
M-axis over-current (HCM)
A
N-axis over-current (HCN)
b L
& M-axis over-current Alarm
"6" or "b"
C M
& N-axis over-current
d L
& N-axis over-current
E
L, M, N -axis over-current
8.
L-axis IPM alarm (IPML)
9.
M-axis IPM alarm (IPMM)
A.
N-axis IPM alarm (IPMN)
b. L
& M-axis IPM alarm
C. M
& N-axis IPM alarm
d. L
& N-axis IPM alarm
E.
L, M, N-axis IPM alarm
L FSSB
Disconnect COP10A
U FSSB
Disconnect COP10B
Related Part NumbersKFASLLC
kfasllc.com
A16B-2203-0698
A20B-2101-0042
A06B-6117-H303 is used with αiF 1/5000, αiF 2/5000, αiS 2/5000, αiS 2/6000, αiS 4/5000.

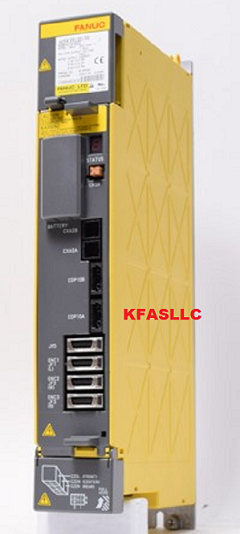

Fanuc Alpha Servo A06B-6117-H303 features
・high power and high acceleration due to optimum winding design and
effective cooling structure.
・Increased torque at low speed range
・Super High precision and high resolution Alpha-iA pulse coder feedback
(16,000,000 pulses/rev)
・Available with both 200V input and 400V input
・Compact size with latest intelligent Power Module (IPM) technology.
・Utilize power source regeneration technology to return regeneration
energy of the motor to a power source.
Compared with the resistor regeneration, power consumption is largely reduced.
Competitive pricing
Fast, reliable delivery
12 Month Warranty included
Trusted source for authentic FANUC parts
Expert support from experienced CNC technicians
