Alarm List for A06B-6059-Hxxx
Alarm List for the following drives:
- Model 6S-26S A06B-6059-Hxxx

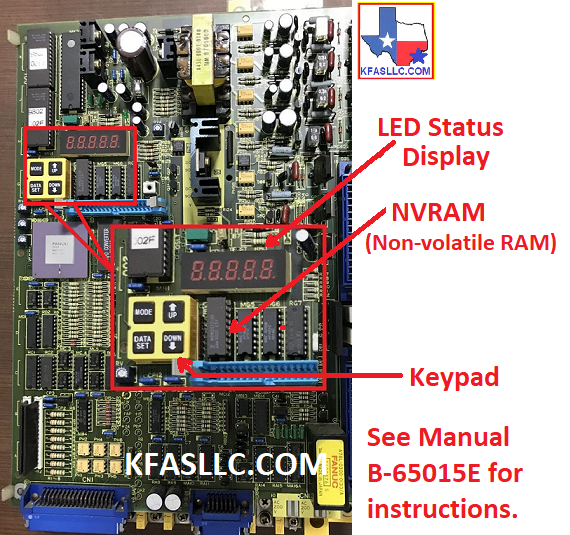

Refer to Manual B-65015E for more detail.
| Alarm # | Meaning |
|---|---|
|
AL-01 |
Motor Overheat |
|
AL-02 |
Speed deviates from commanded speed |
|
AL-03 |
24v Fuse is blown. (before PCB edition 09A) |
|
AL-04 |
Open phase of input power. |
|
AL-05 |
|
|
AL-06 |
Excess Motor Speed Analog |
|
AL-07 |
Excess Motor Speed Digital |
|
AL-08 |
Over voltage |
|
AL-09 |
Overheat of radiator |
|
AL-10 |
Low voltage of input power. |
|
AL-11 |
Excessive high voltage of DC link |
|
AL-12 |
Abnormal current of DC link |
|
AL-13 |
Defective arithmetic circuit |
|
AL-14 |
Defective ROM |
|
AL-15 |
Defective optional circuit. |
|
AL-16-23 |
Defective arithmetic circuit and peripheral circuit |
|
No indication |
Defective ROM |
