Fanuc 15-MB Control Package A02B-0162-B506

Fanuc 15MB A02B-0162-B506        Maintenance Manual 62075-EN

Fanuc 15MB Fanuc 15MB

Fanuc 15MB Fanuc 15MB

Fanuc 15MB Fanuc 15MB

Fanuc 15MB Fanuc 15MB

Photos     1    2    3    4    5    6    7

8    9    10    11

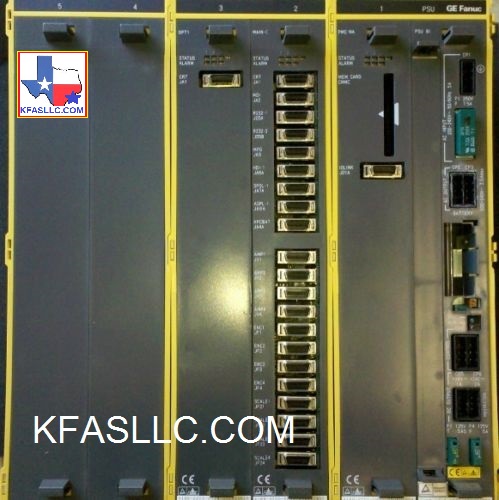

This control package consists

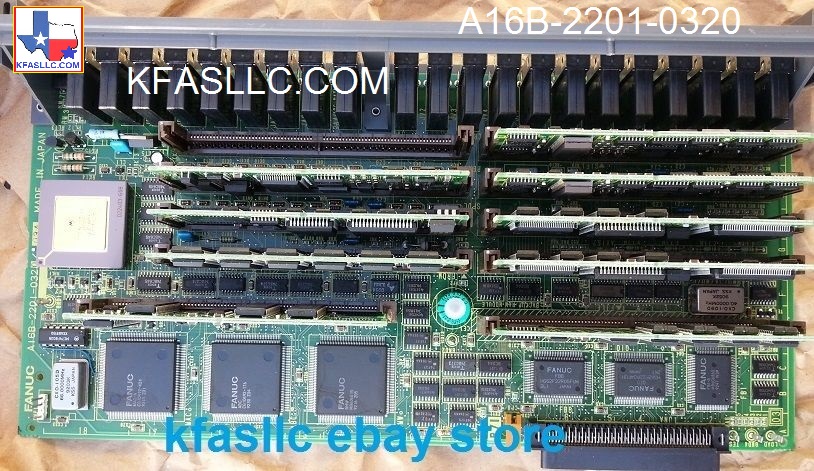

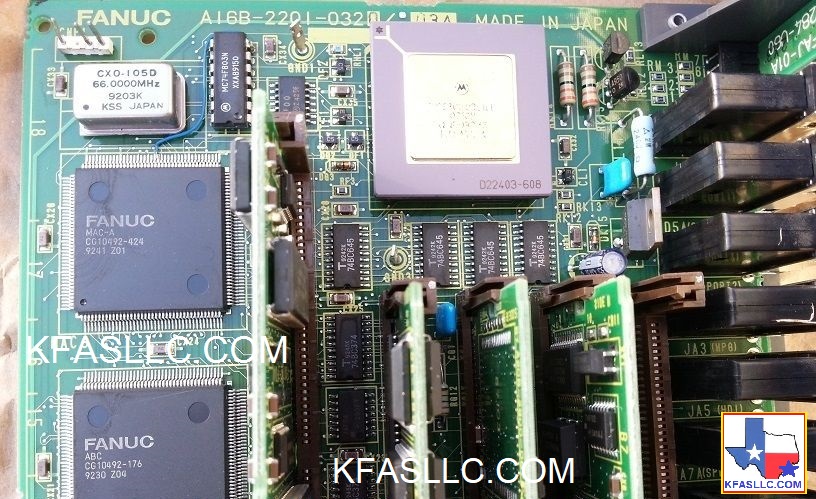

A16B-2201-0320 MAIN CPU
A20B-2900-0800 DRAM 2MB
A20B-2900-0810 FROM 6MB
A20B-2900-0672 Serial SP+HDI
A20B-2900-0660 PERIPHERAL MODULE

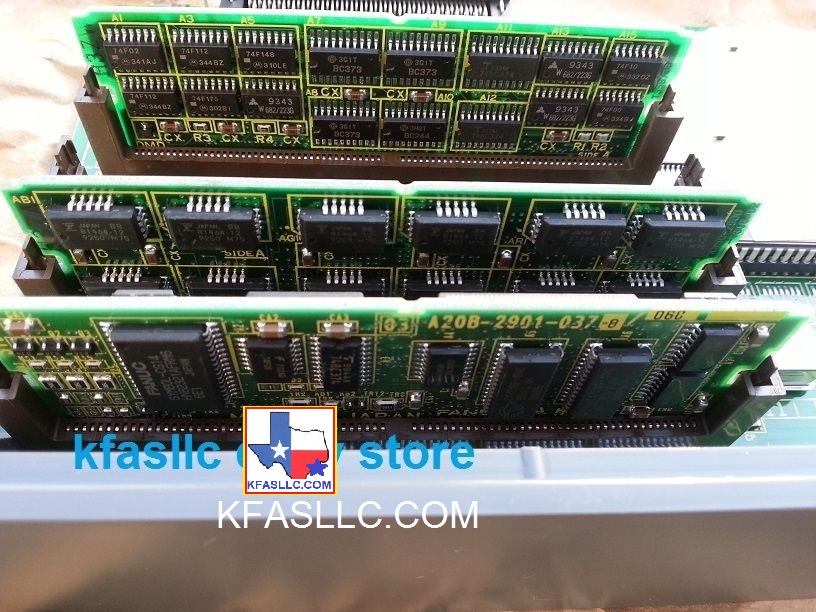

A20B-2901-0360 Servo I/F qty 2
A20B-2901-0340 Digital Servo qty 2

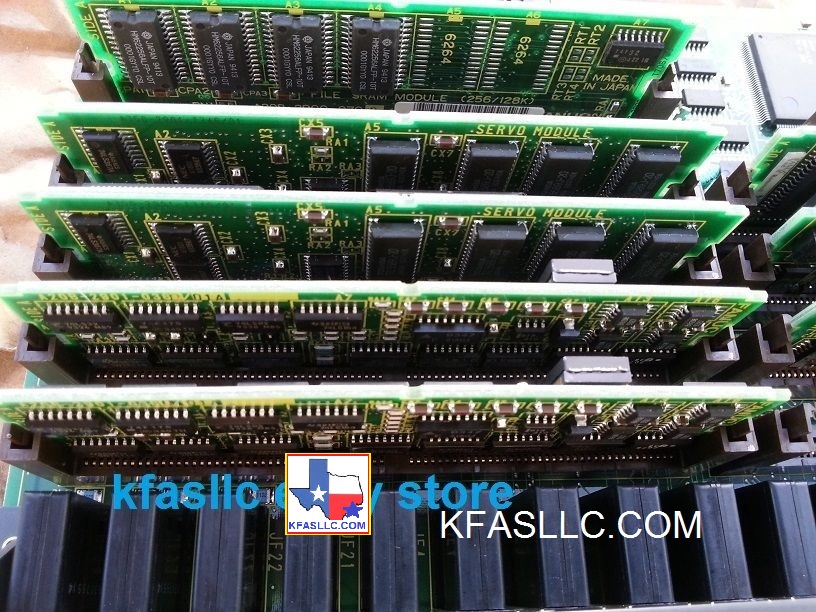

A20B-2900-0700 256K SRAM

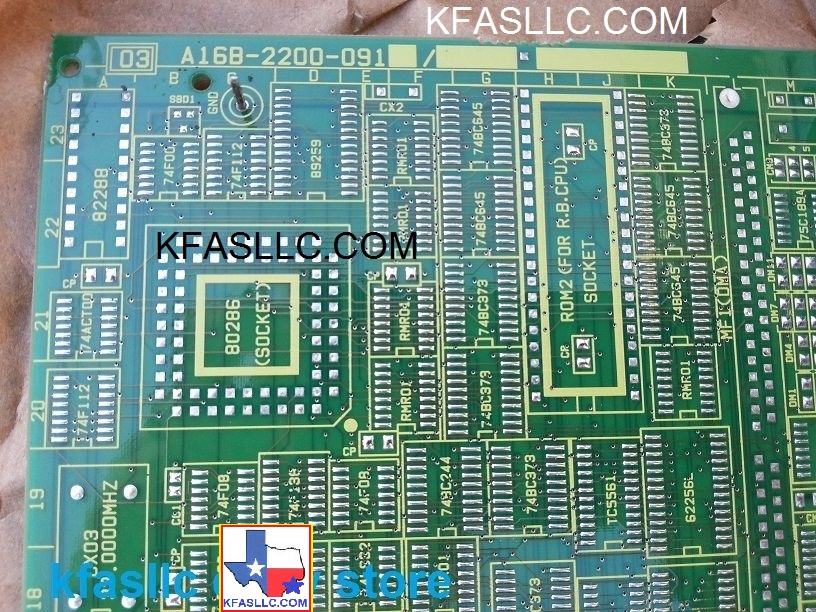

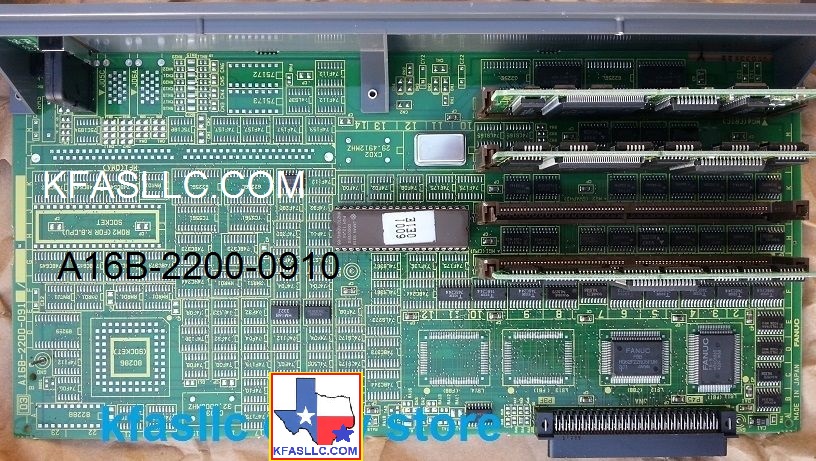

A16B-2200-0917 Graphics PCB
A20B-2900-0350 Graphics CAP II
A20B-2900-0310 Graphics Module
A20B-2901-0370 CRT 14"

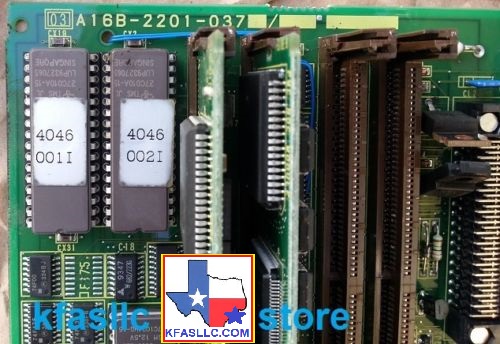

A16B-2201-0371 PMC-NA

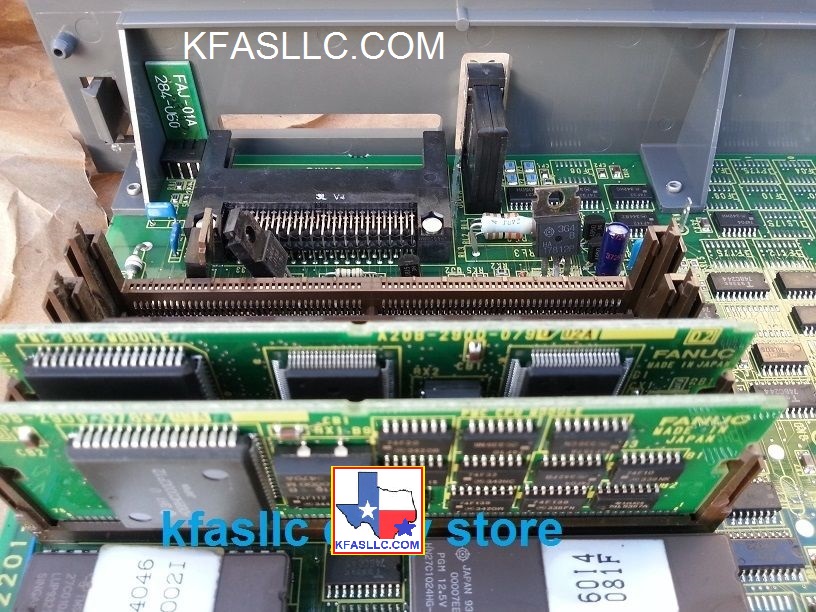

A20B-2900-0780 PMC Engine
A20B-2900-0790 PMC CPU



Software:
System: A0B2-14
Boot:     60I4-06
Servo: 9060 -14
PMC-NA: 4046-09
Graphic: 600I-05


RECONDITIONED AND TESTED

Fanuc CNC controls are custom configured by each machine tool builder to suit their particular needs. Therefore, you can not order a surplus control and simply "drop in" to replace your non-functioning control no matter how they may look similar. KFASLLC can assist you with troubleshooting, repairing, and replacing necessary parts on your control.

RETROFITTING/ INTEGRATION SUPPORT NOT INCLUDED WITH PURCHASE.

Ideal purchase for this control package will be for your mission critical machine.

15-B DESCRIPTIONS (B-62082E)

15-B CONNECTION MANUAL (B62073E)

15-B CONNECTION MANUAL (BMI Interface) (B-62073E-1)

15-TB OPERATORíS MANUAL (PROGRAMMING) (B-62554E)

15-TB OPERATORíS MANUAL (OPERATION) (B-62554E-l)

15-MB OPERATORíS MANUAL (PROGRAMMING) (B62564E)

15-MB OPERATORíS MANUAL (OPERATION) (B-62564E-l)

15-B PARAMETER MANUAL (B-6256OE)

15-B MAINTENANCE MANUAL (B-62075E)
